high capacity, versatile installation

Meet the new Sigma.

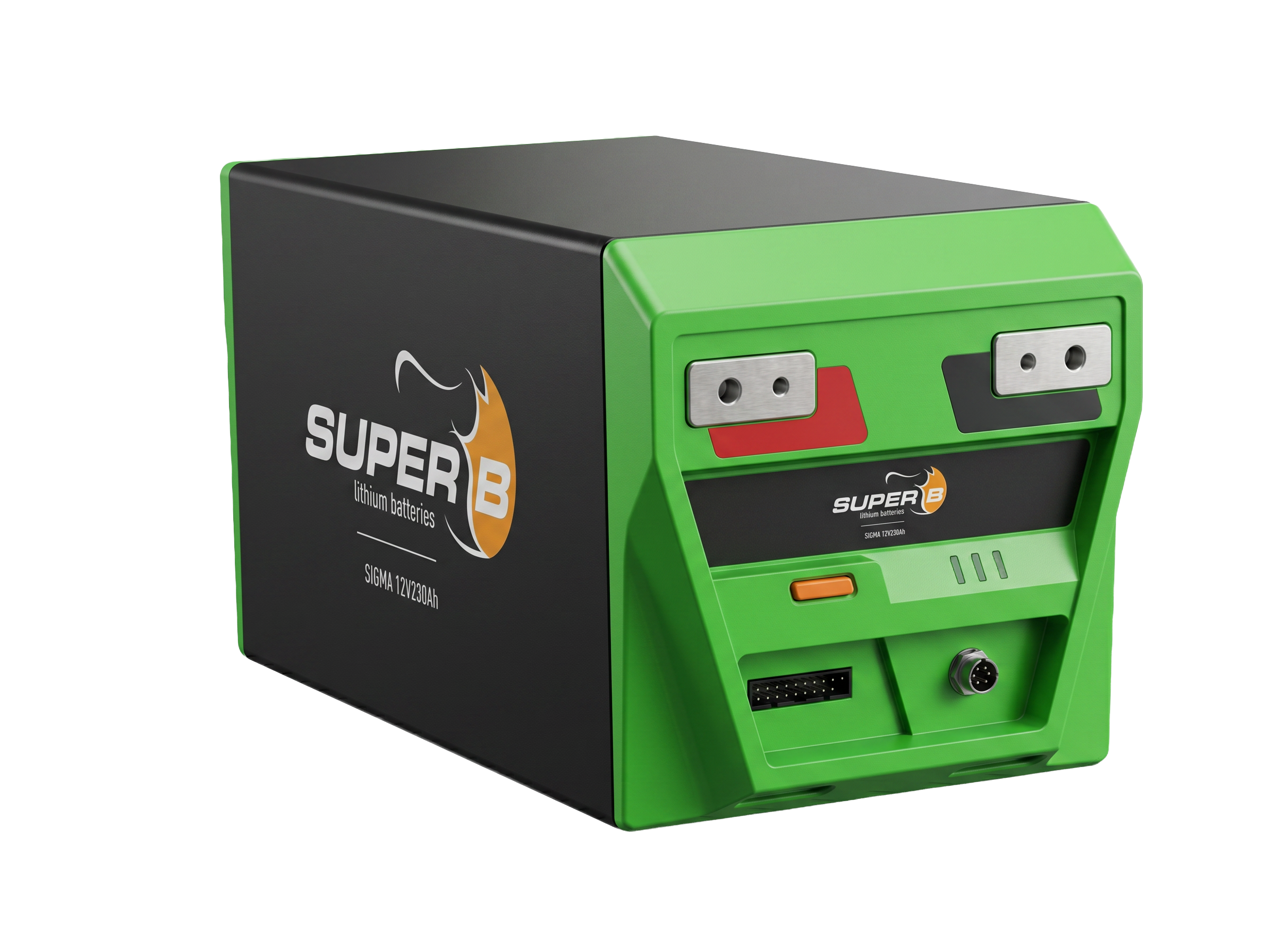

The new Sigma

The Sigma is built for setups that ask more of their battery: high capacity and high discharge currents for systems with serious energy demands.

Sigma is designed to be easy to install. Front-mounted terminals, a flexible build that mounts in multiple positions, and a compact footprint means the Sigma fits where you need it, including the underseat bay of your motorhome.

built for high demand

High capacity and high discharge currents, for setups that run heavier loads and bigger systems.

Scales with your setup

Run one unit or four in parallel. The system grows with you, without any change to the installation.

Terminals on the front

Front-mounted terminals make connections easy to reach and easy to work with, even in a tight underseat bay.

Sigma 230Ah 200A Sigma 460Ah 200A Sigma 230Ah Duo
Energy 2,944 Wh 5,888 Wh 5,888 Wh
Max. charge current 200A 200A 350A
Discharge current continuous 200A 300A 350A
Discharge pulse current 350A 350A 600A
Weight approx. 22 kg approx. 40 kg approx. 44 kg
Dimensions 351 x 182 x 189 mm 351 x 356 x 189 mm 351 x 364 x 189 mm
Case material UL 94 V-0 (flame-retardant) UL 94 V-0 (flame-retardant) UL 94 V-0 (flame-retardant)

Sigma 230Ah 200A

Energy
2,944 Wh
Max. charge current
200A
Discharge current continuous
200A
Discharge pulse current
350A
Weight
approx. 22 kg
Dimensions
351 x 182 x 189 mm
Case material
UL 94 V-0 (flame-retardant)

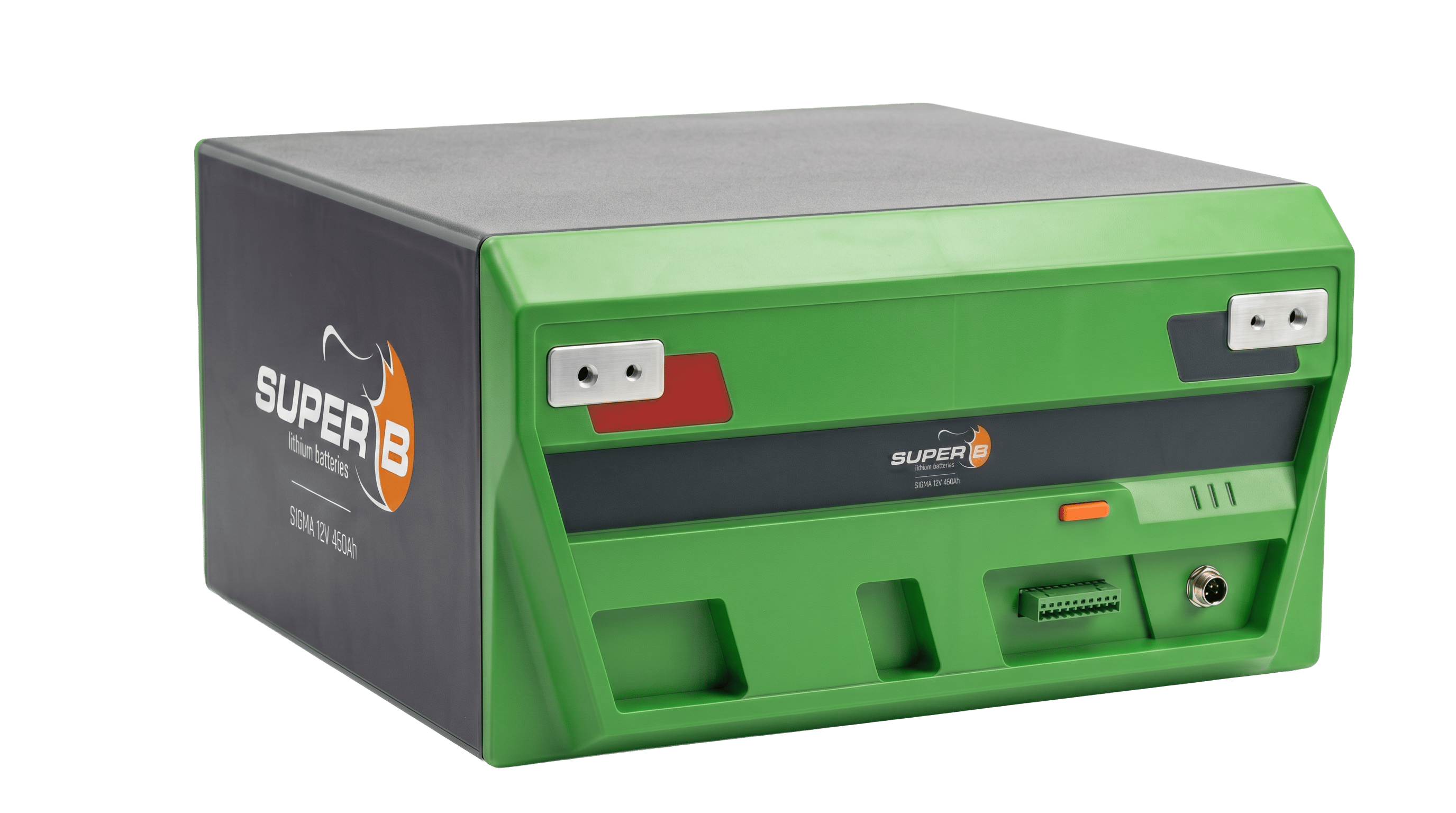

Sigma 460Ah 200A

Energy
5,888 Wh
Max. charge current
200A
Discharge current continuous
300A
Discharge pulse current
350A
Weight
approx. 40 kg
Dimensions
351 x 356 x 189 mm
Case material
UL 94 V-0 (flame-retardant)

Sigma 230Ah Duo

Energy
5,888 Wh
Max. charge current
350A
Discharge current continuous
350A
Discharge pulse current
600A
Weight
approx. 44 kg
Dimensions
351 x 364 x 189 mm
Case material
UL 94 V-0 (flame-retardant)

All models: 12.8V nominal · LiFePO4 · integrated protective BMS with smart heating · Bluetooth · 5,000+ cycle life · operating range -30°C to +65°C · UN ECE R10, FCC Class B, ICES-003, EMC, RED, UN 38.3, UN3480 Class 9 certified

Room to build

Most batteries force a compromise: you settle for less capacity than you wanted, or give up the space you needed for the rest of your system. The Sigma was designed to end that trade-off, with the capacity you’re after in a battery that installs where it suits you.

That changes what’s possible. The inverter and the charger go where you want them. And when you add solar, or a second fridge, or just want more days off-grid, the Sigma grows with your system.
